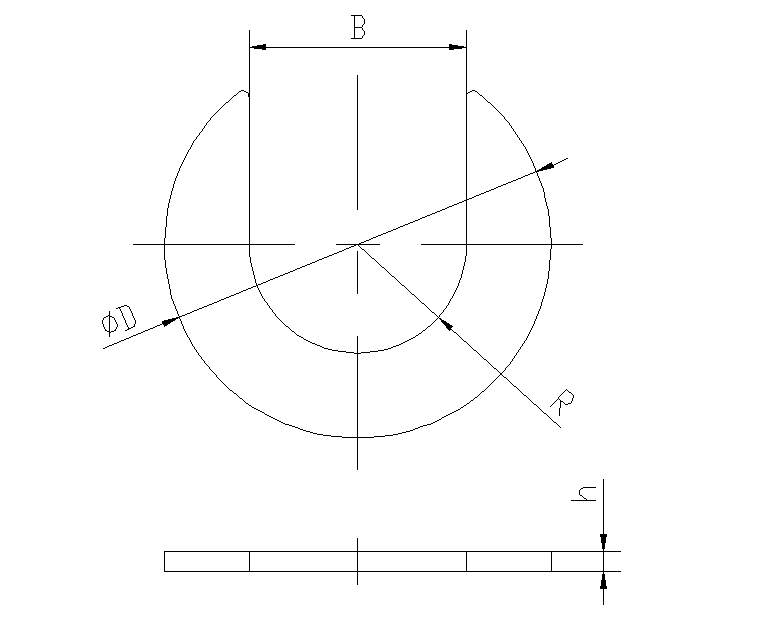

DN |
D |
R |
B |
h |
|
DN40-DN80 |
20 |
5.25 |
10.5 |
1.5 |
|
DN100 |
25.3 |
7 |
14 |
1.5 |
|
DN125-DN150 |
29 |
8.15 |
16.3 |
1.5 |
|
DN200 |
33 |
10.15 |
20.3 |
1.5 |
|
DN250 |
39.7 |
13 |
26 |
1.5 |
|
DN300-DN350 |
44 |
14.5 |
29 |
1.5 |
|

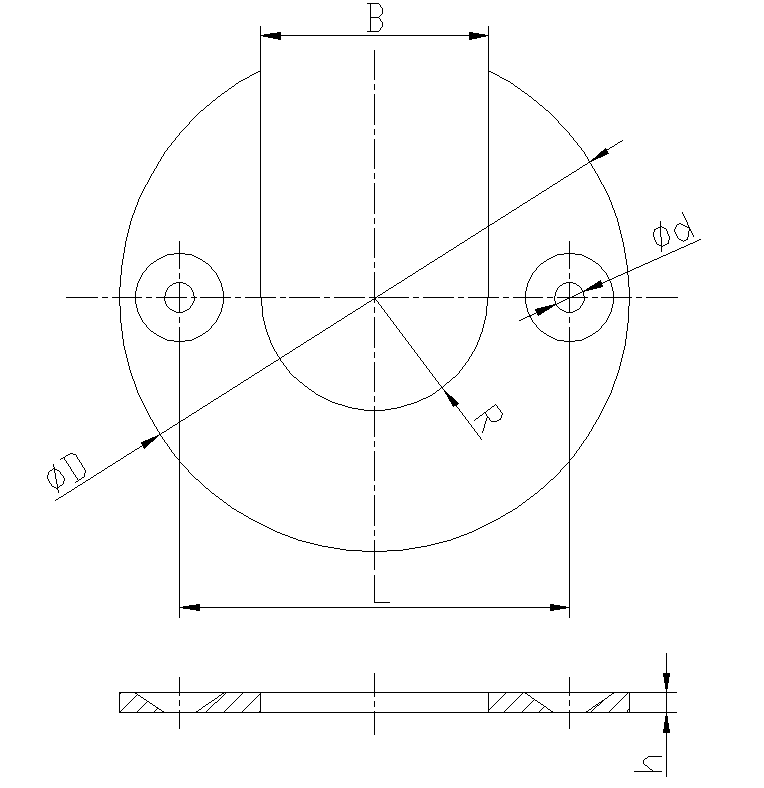

DN |
D |
L |
d |
R |
B |
h |
|
DN350 |
65.5 |
50 |
4 |
14.65 |
29.3 |
2.6 |
|
DN400 |
96 |
64 |
6.3 |
15.25 |
30.5 |
2.4 |
|
DN450 |
95 |
65 |
7 |
17.7 |
35.4 |
2.5 |
|
DN500 |
94 |
68 |
6.3 |
19.25 |
38.5 |
2.5 |
|
DN600 |
120 |
84 |
7 |
23.75 |
47.5 |
2.7 |
|
DN700-DN800 |
160 |
110 |
11 |
29.25 |
58.5 |
3 |
|
DN900 |
160 |
110 |
11 |
35.15 |
70.3 |
3 |
|
DN1000 |
170 |
125 |
11.5 |
40.15 |
80.3 |
3 |
|

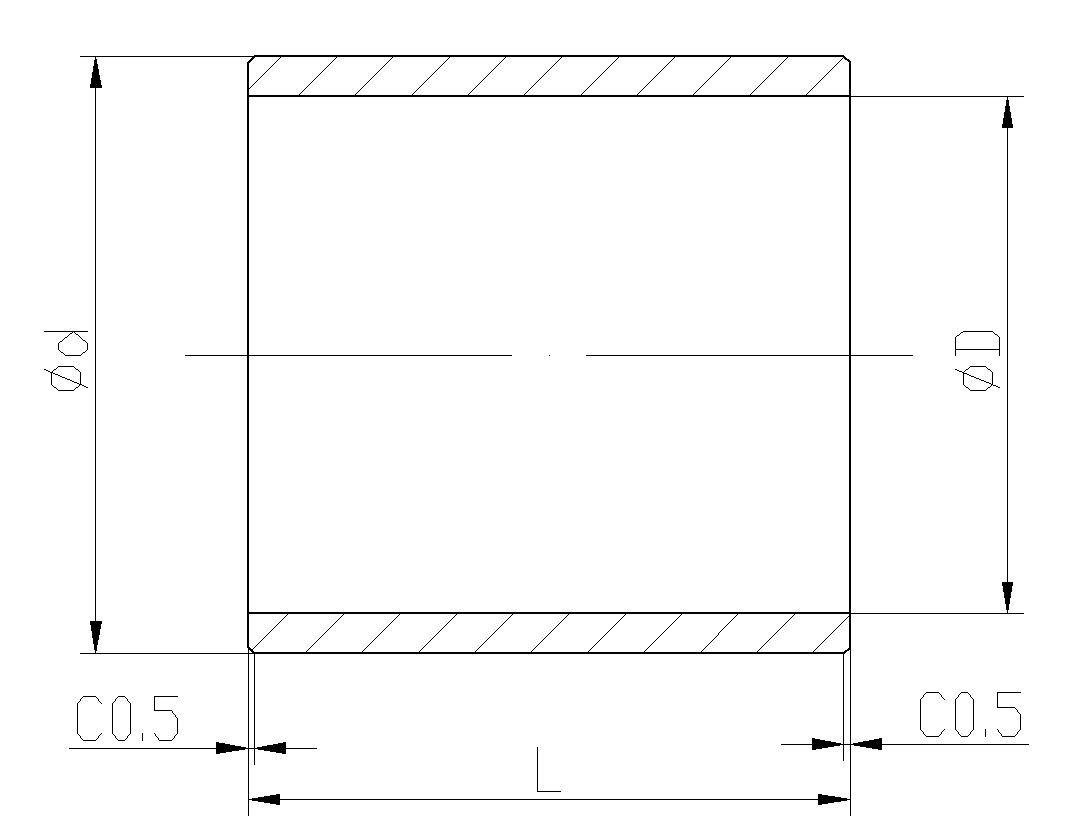

DN |
D |
d |
L |
|
DN40-DN80 |
∅12.7 |
∅17.45 |
10 |
|
DN100 |
∅15.8 |
∅20.62 |
12 |
|
DN125-DN150 |
∅19.05 |
∅23.8 |
14 |
|
DN200 |
∅22.2 |
∅28.58 |
17 |
|
DN250 |
∅28.6 |
∅34.93 |
20 |
|
DN300-DN350 |
∅31.6 |
∅38.1 |
20 |
|
DN400 |
∅33.34 |
∅39.7 |
48 |
|
DN450 |
∅37.95 |
∅44.45 |
48 |
|
DN500 |
∅41.15 |
∅47.5 |
48 |
|
DN600 |
∅50.65 |
∅57.15 |
48 |
|
DN700-DN800 |
∅63.55 |
∅70 |
45 |
|
DN900 |
∅75 |
∅85 |
60 |
|
DN1000 |
∅85 |
∅95 |
60 |
|
DN1200 |
∅105 |
∅115 |
60 |
