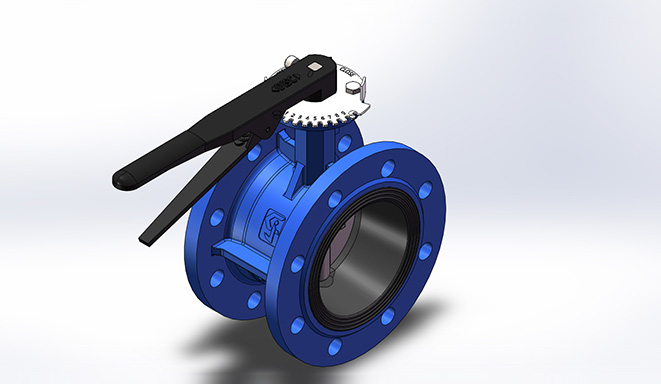

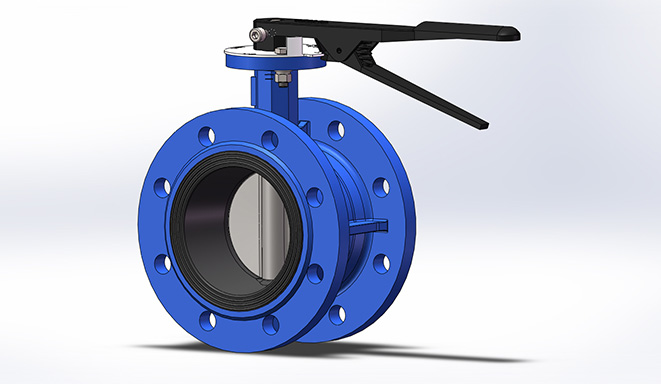

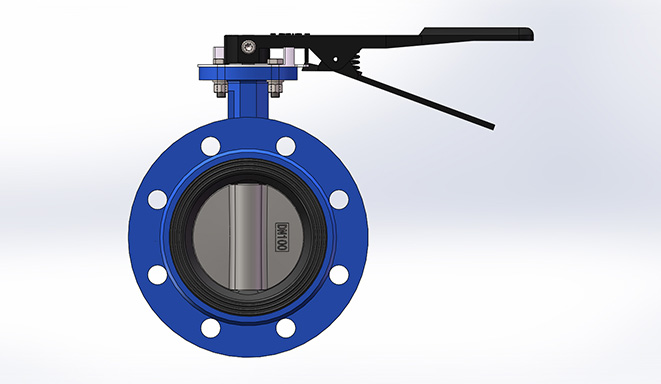

Lever Operated Flange Butterfly Valve

Product Model: D41X-10Q、D41X-16Q 、D41X-150LB
Size: DN50-DN300
Nominal Pressure: PN10/PN16/Class 150
Suitable Temperature: -20～120℃
Applicable Medium: Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.
Body Materials: Ductile Iron
Application field: Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Send E-mail Inquiry Now

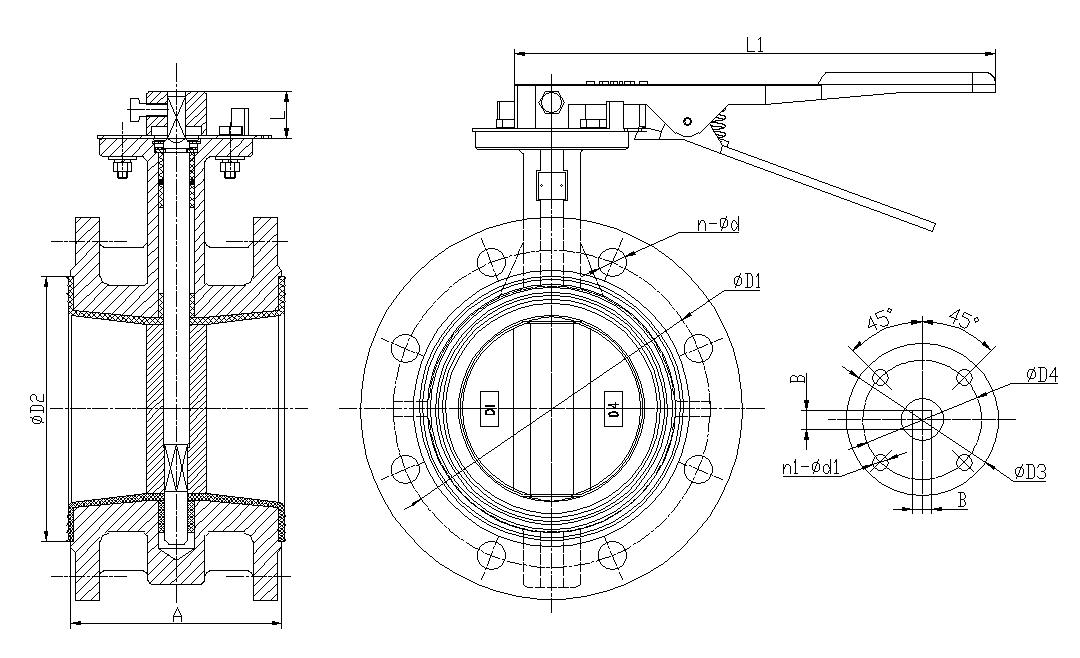

Design and Manufacture Standard:	API 609
Face to Face::	API 609
Test Standard：	API 598
Top Flange Connection Standard:	ISO 5211
Flange Size Standard:	ASME B16.5、ASME B16.47、DIN 2501
Flange Size Standard:	ASME B16.1、JIS B2220、DIN 2501

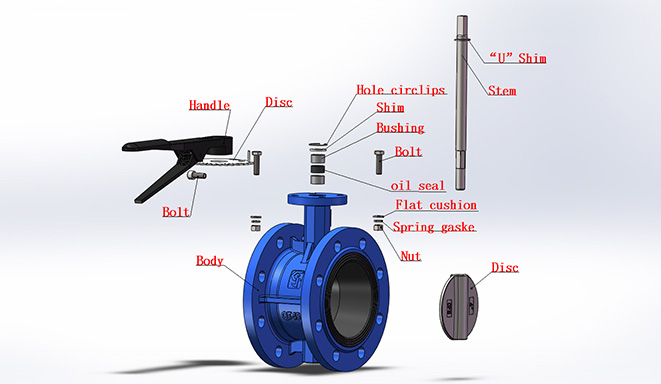

（1）The structure is simple and compact, the rotation of 90 °is quickly to open and close.
（2）All products can provide the pressure test: All CHAOJI products can provide the pressure test report before leaving the factory.

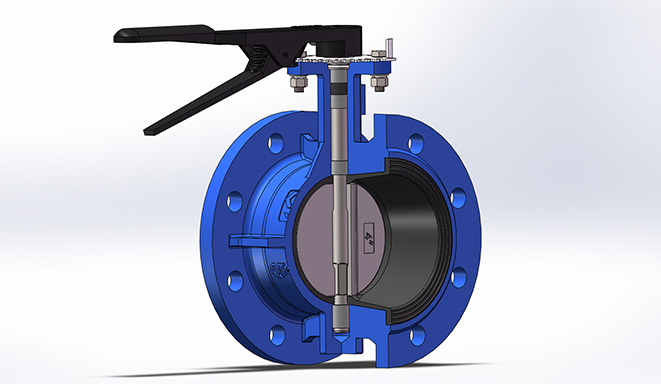

（3）High performance seat rubber: The rubber content is 50%, and the switch life is more than 30000 times. The rubber and valve body are joined by vulcanization process, and the joint is tight and doesn’t fall off;
（4）Axial seal: The valve shaft has a double seal structure design of oil seal and O-ring, smaller torque and reliable seal;
（5）Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.
（6）Ductile iron handle: The handle is made of ductile iron, compared with Stamping handle, ductile iron handle is more better strength, stronger corrosion resistance and much more durable. The end handle with half-round structure design, is no edges and corners and feels very good.
