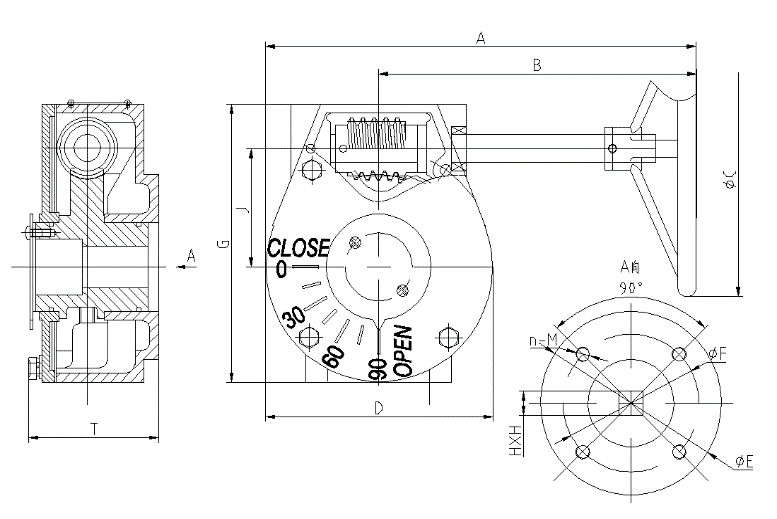

型号（size） |
DN |
A |
B |
C |
D |
J |
G |
T |
φE |
φF |
n-M |
H×H |
传动比 （Transmission Ratio） |
扭矩 （N M） |
|
3D-15 |
DN50-DN80 |
194 |
140 |
135 |
97 |
47 |
115 |
58 |
90 |
50 |
4-M6 |
9×9 |
24:1 |
150 |
|
3D-15 |
DN100 |
194 |
140 |
135 |
97 |
47 |
115 |
58 |
90 |
70 |
4-M8 |
11×11 |
24:1 |
150 |
|
3D-15 |
DN125/DN150 |
194 |
140 |
135 |
97 |
47 |
115 |
58 |
90 |
70 |
4-M8 |
14×14 |
24:1 |
150 |
|
3D-50 |
DN200 |
253 |
198 |
270 |
130 |
55 |
150 |
74 |
90 |
102 |
4-M10 |
17×17 |
30:1 |
500 |
|
3D-50 |
DN250 |
253 |
198 |
270 |
130 |
55 |
150 |
74 |
125 |
102 |
4-M10 |
22×22 |
30:1 |
500 |
|
3D-120 |
DN300/350 |
254 |
194 |
270 |
143 |
68 |
173 |
76 |
125 |
102 |
4-M10 |
22×22 |
50:1 |
1200 |
|

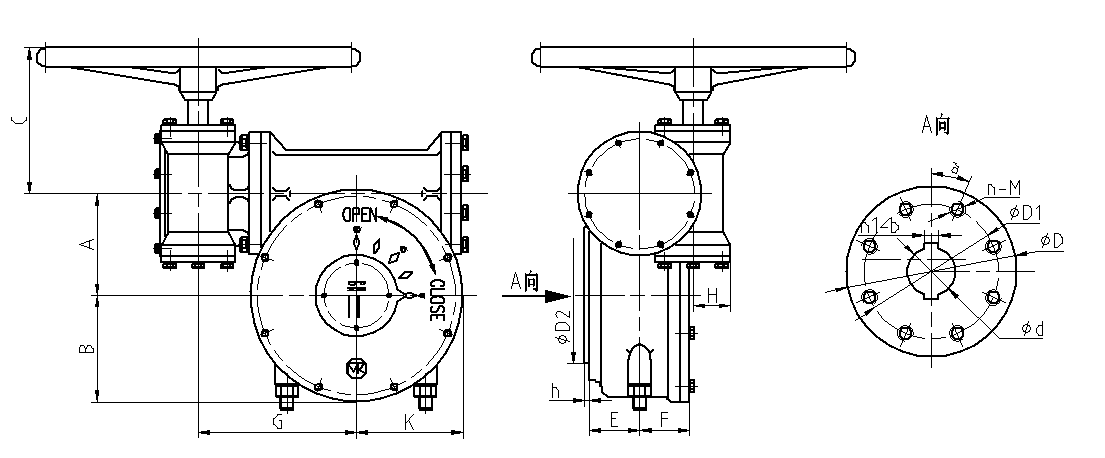

型号（size） |
DN |
A |
B |
C |
D |
D1 |
D2 |
h |
E |
F |
H |
G |
K |
φ |
n-M |
a |
d |
n1-b |
传动比 （Transmission Ratio） |
扭矩 （N M） |
|
3DA-30/250 |
DN400 |
100 |
105 |
148 |
197 |
140 |
/ |
/ |
64 |
60 |
45 |
172.5 |
105 |
300 |
4-M16 |
45 |
33.2 |
1-10 |
560:1 |
2.5×103 |
|
3DA-30/250 |
DN450 |
100 |
105 |
148 |
197 |
140 |
/ |
/ |
64 |
60 |
45 |
172.5 |
105 |
300 |
4-M16 |
45 |
38 |
1-10 |
560:1 |
2.5×103 |
|
3DA-30/250 |
DN500 |
100 |
105 |
148 |
197 |
140 |
/ |
/ |
64 |
60 |
45 |
172.5 |
105 |
300 |
4-M16 |
45 |
41.2 |
1-12 |
560:1 |
2.5×103 |
|
3DA-30/400 |
DN600 |
125 |
131 |
176 |
210 |
165 |
/ |
/ |
64 |
66 |
46.5 |
200 |
131 |
300 |
4-M20 |
45 |
50.7 |
1-16 |
640:1 |
4×103 |
|
3DA-60/800 |
DN700/800 |
140 |
146 |
198 |
300 |
254 |
200 |
4 |
74 |
88 |
55 |
228 |
146 |
400 |
8-M16 |
22.5 |
63.4 |
2-18 |
704:1 |
8×103 |
|
3DA-60/1500 |
DN900 |
162 |
177 |
200 |
300 |
254 |
200 |
4 |
98 |
88 |
55 |
248 |
177 |
450 |
8-M18 |
22.5 |
75 |
2-20 |
704:1 |
15×103 |
|
3DA-60/1500 |
DN1000 |
162 |
177 |
200 |
300 |
254 |
200 |
4 |
98 |
88 |
55 |
248 |
177 |
450 |
8-M18 |
22.5 |
85 |
2-22 |
704:1 |
15×103 |
|
3DA-60/2500 |
DN1200 |
236 |
179 |
205 |
350 |
298 |
230 |
4 |
127 |
99 |
60 |
310 |
249 |
450 |
8-M20 |
22.5 |
105 |
2-28 |
575:1 |
25×103 |
