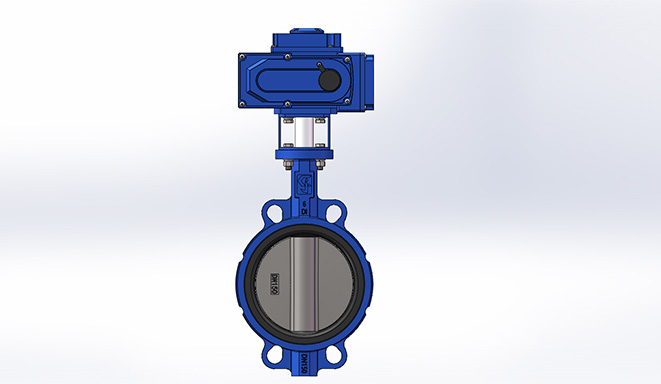

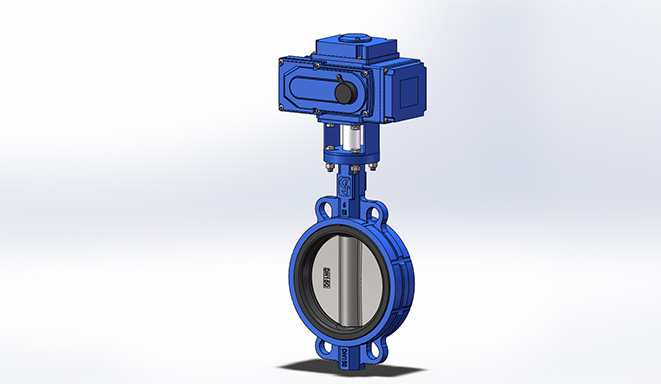

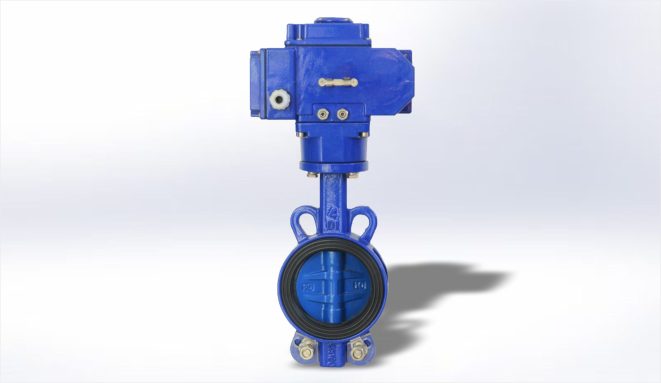

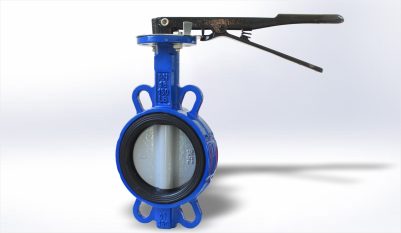

Electric Actuator Wafer Universal Flange Butterfly Valve

  • Product Model: D971X-10/16Q、D971X-10K 、D971X-150LB
  • Size: DN40-DN1200
  • Nominal Pressure: PN10/PN16/Class 150/10K
  • Suitable Temperature: -20~120℃
  • Applicable Medium: Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.
  • Body Materials: Ductile Iron
  • Application field: Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.
1、Design Standards
Design and Manufacture Standard: API 609
Face to Face:: API 609
Test Standard: API 598
Top Flange Connection Standard: ISO 5211
Flange Size Standard: ASME B16.5、ASME B16.47、DIN 2501
ASME B16.1、JIS B2220

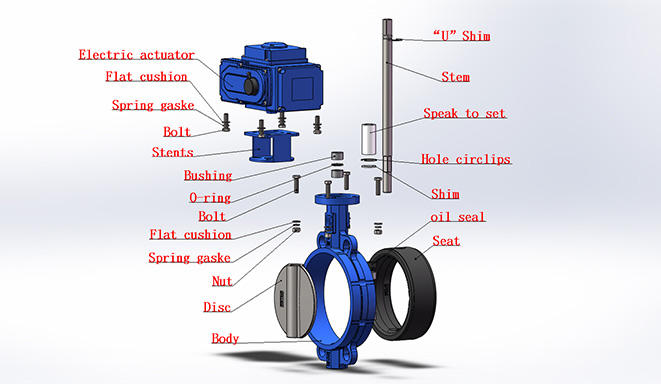

2、Main Parts Materials
Body Materials: DI
Disc Materials: DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598
Seat Materials: EPDM、NBR、Viton、PTFE
Stem Materials: SS416、SS420、SS304
3、Product Advantages
  • (1)The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long. The side flange can meet the PN10, PN16, 150Lb and 10K flanges;
  • (2)All products can provide the pressure test: All CHAOJI products can provide the pressure test report before leaving the factory.
  • (3)High performance seat rubber: The rubber content is 50%, and the switch life is more than 30000 times

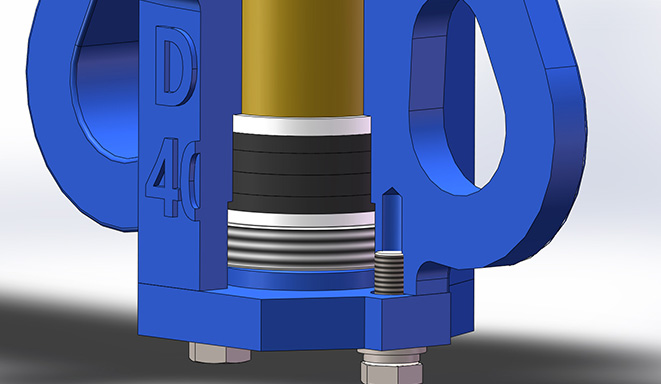

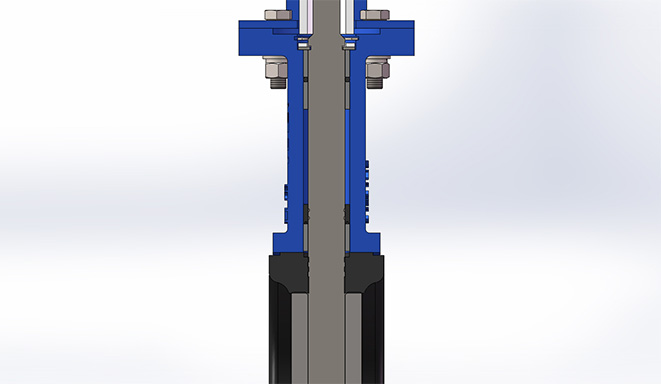

  • (4)Axial seal: The shaft is supported by 4 oil-free bearings, with o-ring and oil seal double seal structure design, smaller torque and reliable seal; The upper and lower shaft holes of DN350 and above large diameter valves are designed with packing box structure, and the packing is pressed by the gland to realize sealing.
  • (5)Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.
  • (6)The design of shaft is blow-off resistant: The no-pin butterfly valve is designed with anti blow-off structure, and electric actuator can be changed under pressure.
4、Parameters

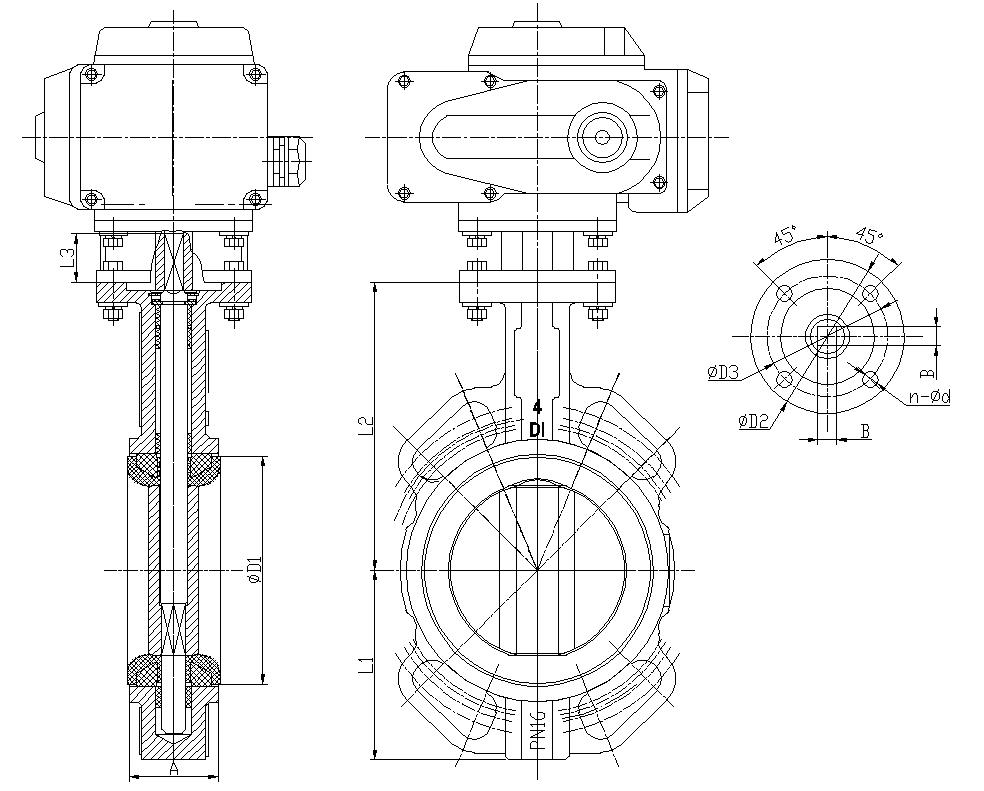

DN A D1 L1 L2 L3 B φD2 φD3 n-φd φD4
1.5″ DN40 33 69 65 127 25 9 65 50 4-8 135
2″ DN50 42 73.3 75 129 25 9 65 50 4-8 135
2.5″ DN65 44 86 82 136 25 9 65 50 4-8 135
3″ DN80 45 100.9 99 153 25 9 65 50 4-8 135
4″ DN100 51.5 132 110 167 28 11 90 70 4-10 135
5″ DN125 54 156 125 193 28 14 90 70 4-10 135
6″ DN150 55 185 145 209 28 14 90 70 4-10 135
8″ DN200 59 235 170 251 33 17 125 102 4-12 270
10″ DN250 66 289 210 280 33 22 125 102 4-12 270
12″ DN300 76 341 240 312 33 22 125 102 4-12 270
14″ DN350 76 372 271 327 45 22 125 102 4-12 270

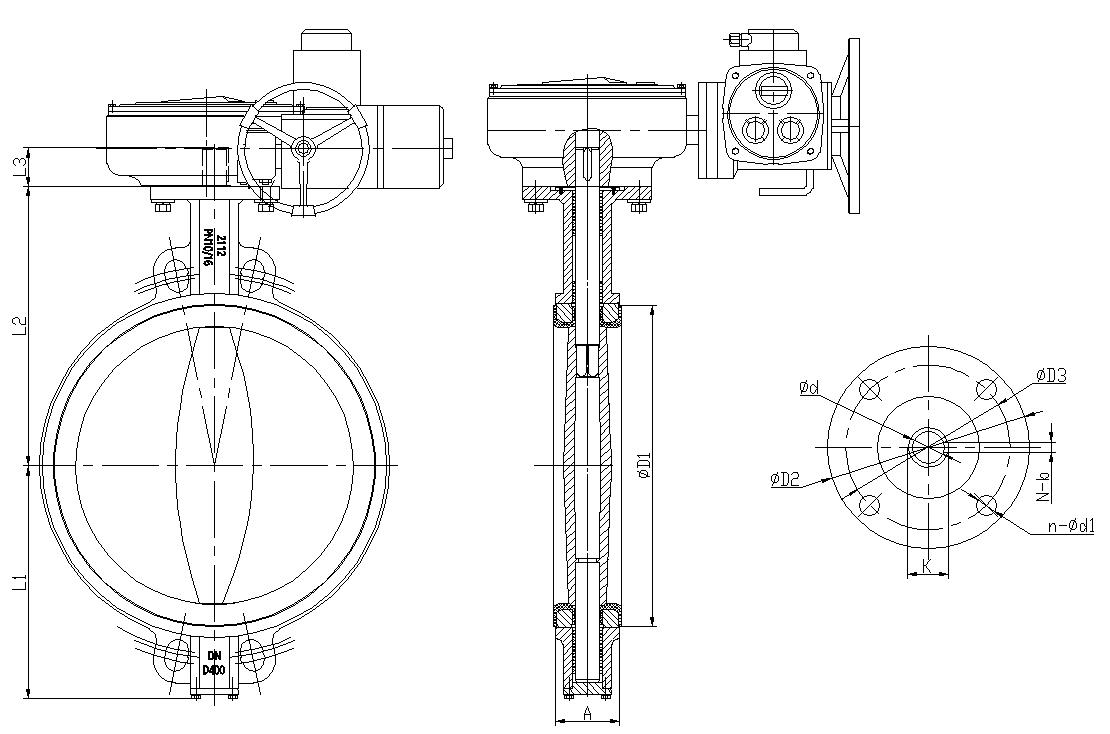

DN A D1 L1 L2 L3 φd φD2 φD3 n-φd1 N-b K
16″ DN400 86.5 436 320 403 52 33.15 175 140 4-18 1-10 36.2
18″ DN450 104.6 487 351 415 52 38 175 140 4-18 1-10 41
20″ DN500 130 532 386 466 64 41.15 175 140 4-18 1-12 44.2
24″ DN600 152 651 446 525 70 50.65 210 165 4-22 1-16 54.7
28″ DN700 163 741 520 618 95 63.35 300 254 8-18 2-18 71.4
32″ DN800 188 847 580 665 95 63.35 300 254 8-18 2-18 71.4
36″ DN900 203 971 670 720 130 75 300 254 8-18 2-20 84
40″ DN1000 216 1050 735 800 130 85 300 254 8-18 2-22 95
48″ DN1200 276 1261 878 940 150 105 350 298 8-22 2-28 117
