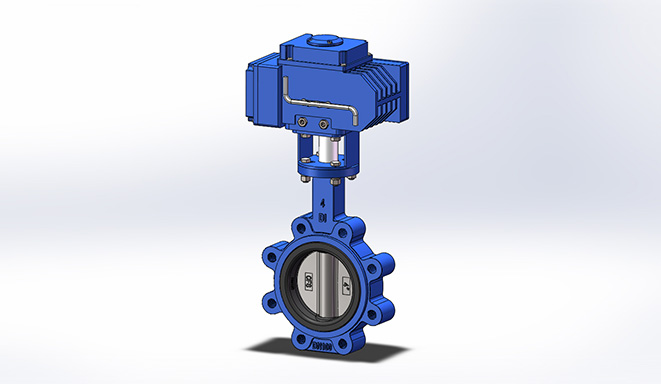

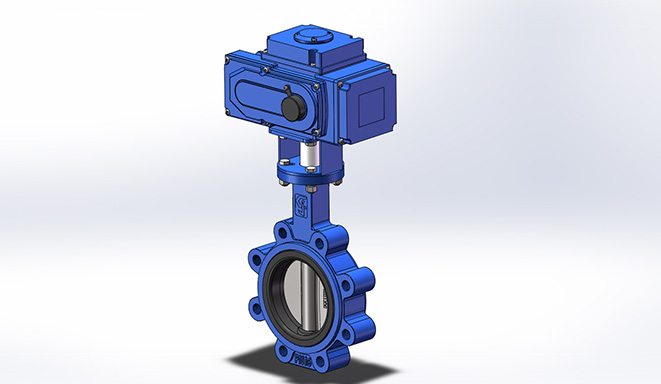

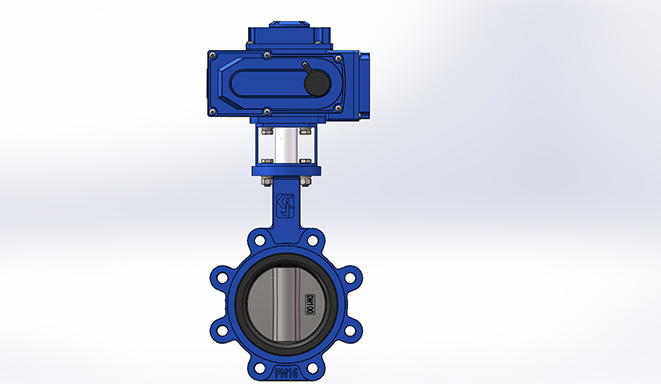

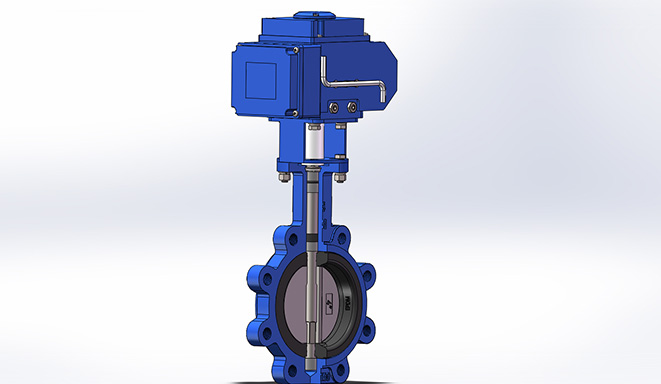

Electric Actuator Lug Butterfly Valve

Product Model: LTD971X-10/16Q、LTD971X-10K 、LTD971X-150LB
Size: DN50-DN600
Nominal Pressure: PN10/PN16/Class 150/10K
Suitable Temperature: -20～120℃
Applicable Medium：Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.
Body Materials: Ductile Iron
Application field: Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Send E-mail Inquiry Now

Design and Manufacture Standard:	API 609
Face to Face	API 609
Test Standard：	API 598
Top Flange Connection Standard:	ISO 5211

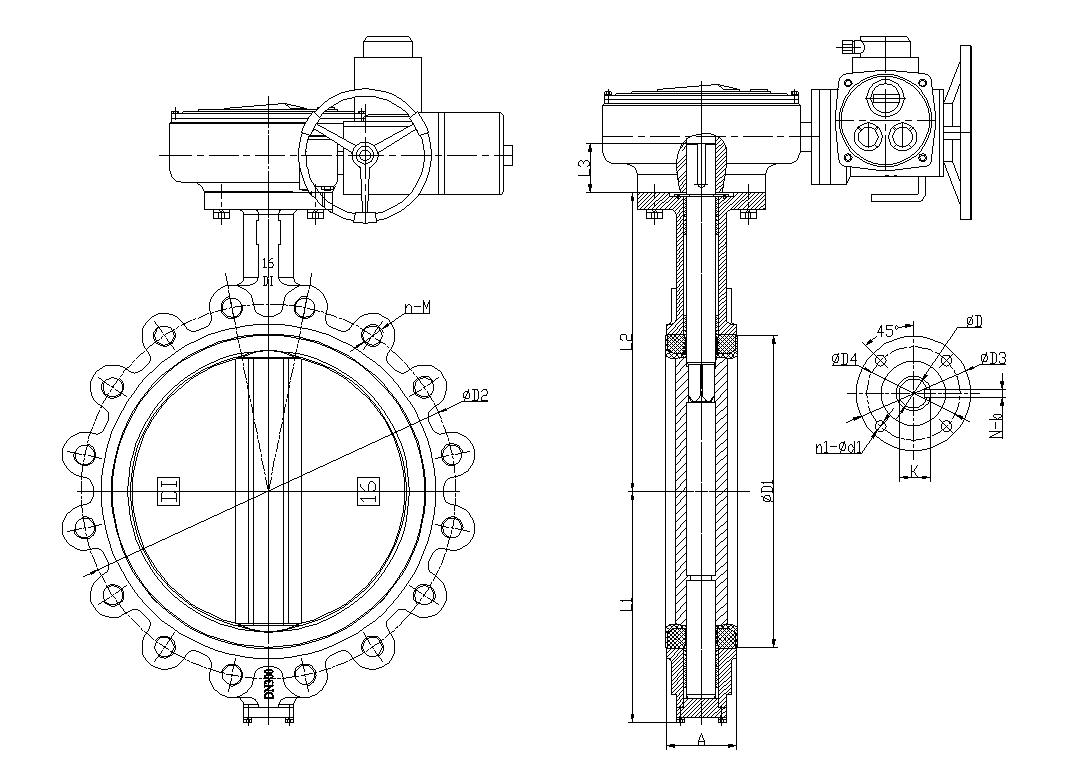

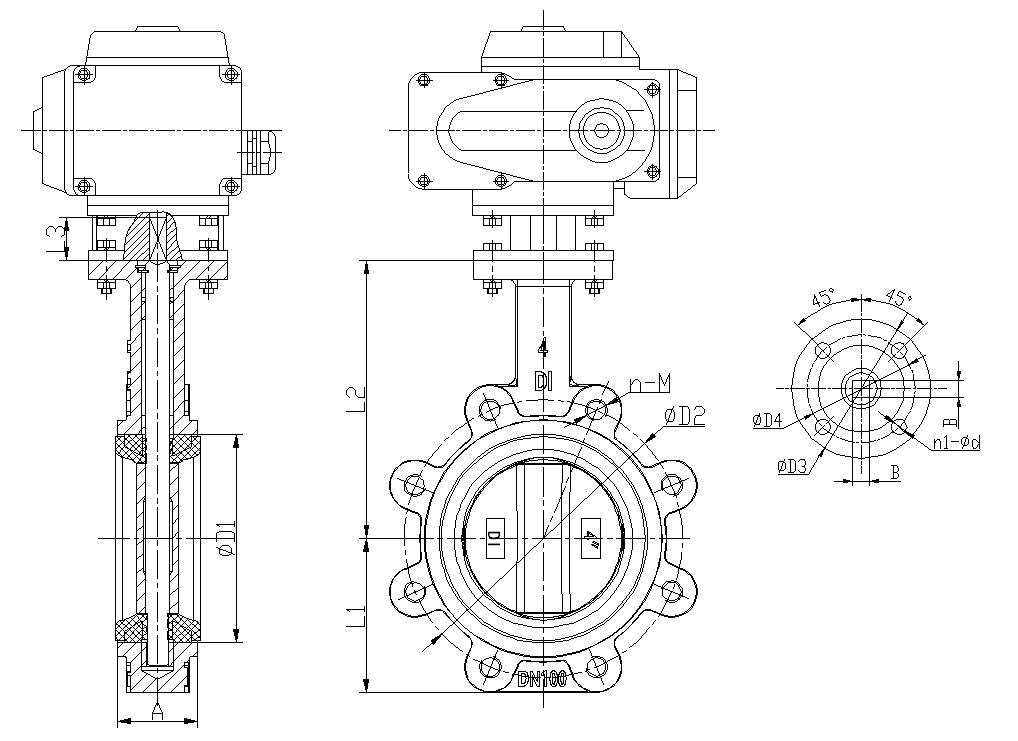

Flange Size Standard:	ASME B16.5、ASME B16.47、
Flange Size Standard:	ASME B16.1、JIS B2220、DIN 2501

（1）The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long.
（2）All products can provide the pressure test: All CHAOJI products can provide the pressure test report before leaving the factory.
（3）High performance seat rubber: The rubber content is 50%, and the switch life is more than 30000 times

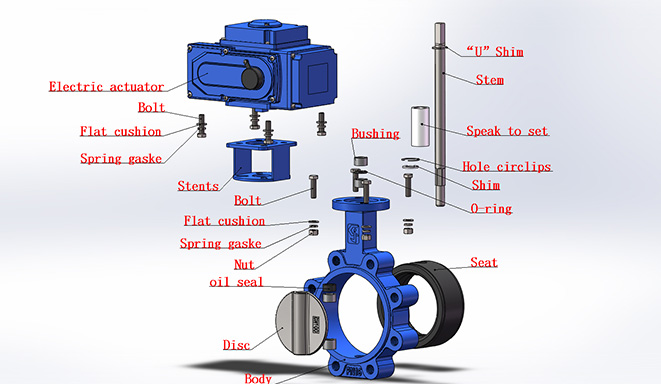

（4）Axial seal: The shaft is supported by 4 oil-free bearings, double seal structure design of oil seal and O-ring, smaller torque and reliable seal; The upper and lower shaft holes of DN350 and above large diameter valves are designed with packing box structure, and the packing is pressed by the gland to realize sealing.
（5）Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.
（6）The design of shaft is blow-off resistant: The no-pin butterfly valve is designed with anti blow-off structure, and electric actuator can be changed under pressure.
